(Un)marking of move points

Filip C 3 weeks ago in Metrology Software / PC-DMIS • updated 2 weeks ago • 2

Currently, when I unmark feature for execution, the MOVE POINT gets unmarked as well (Even though there is an IF statement and a comment) = Mark

This led to big machine crash recently. Make it available for user to toggle, how PC-DMIS acts. E.g. when I want to unmark a feature=just the feature gets unmarked, nothing else.

Neil Challinor 2 weeks ago

Have you tried the different marking methods available under EDIT>MARKINGS?


You can select Child mode, parent mode, new alignment mode or turn them all off so that PC-DMIS only marks the specific command you select.

See: Marking Commands for Execution

Filip C 2 weeks ago

Tried just now, turning them all off or trying them one by one - marking acts the same ...

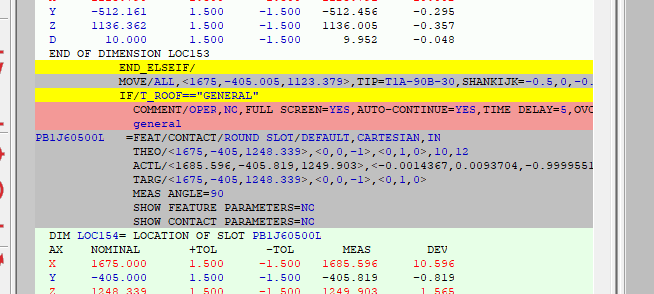

I unmarked the feature -the slot- and MOVE ALL got unmarked as well:

Image 732
