Add jump hole feature to auto cylinder and auto circle scans

Jesper 4 hours ago in Metrology Software / PC-DMIS 0

Hi!

A common way of designing in certain fields is to have 2 internal cylinders to cross/pierce eachother. Therefore when choosing to scan these cylinders, having a jump hole feature same or similar to the one existing on plane scans would be of great use, instead of having to program multiple auto circles and/or cylinders. A nice additional feature to add to this would be to be able to choose to either jump by distance or angle, depending on how the part is toleranced.

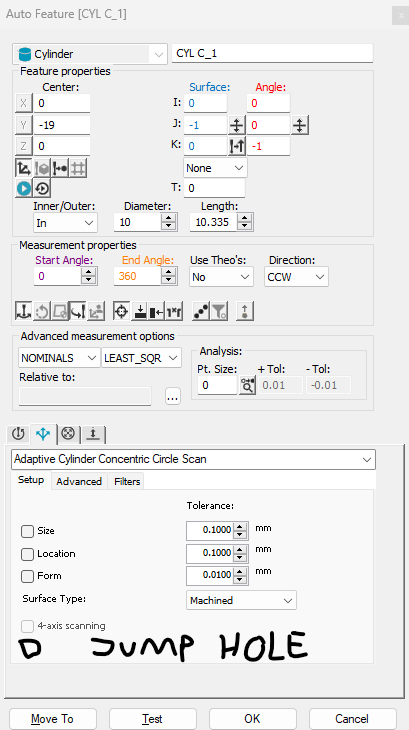

Great place to have it would be in the setup window.

Image 692
