Report template: When is it possible to insert the scan on the 3D CAD with the individual points (T-difference) also in the report as a 3D image with the deviations visible?

2 years ago in Metrology Software / PC-DMIS • updated by 9 hours ago • 1

It is also possible to click on individual points and have the deviation displayed directly in the report.

Vote

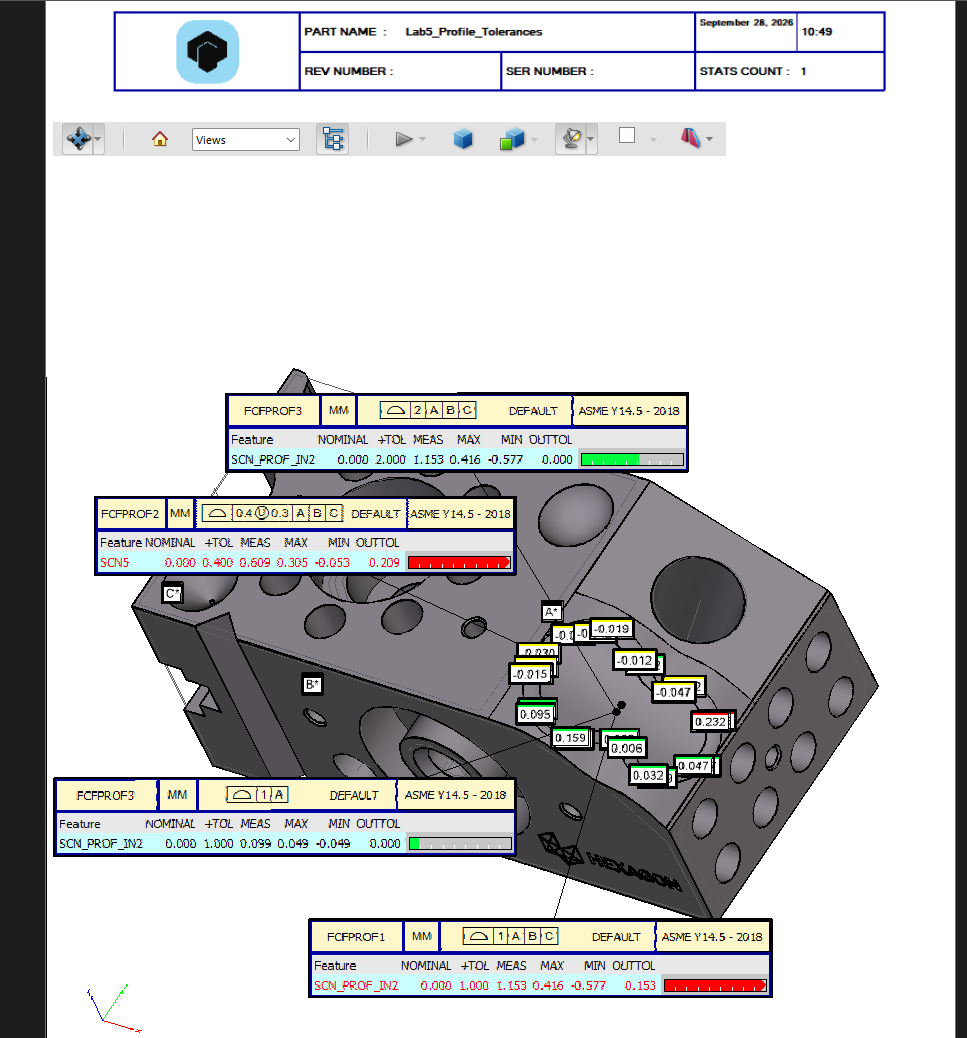

Have you tried adding POINTINFO labels and printing to 3D PDF? This is a screenshot of an example I created using tactile data...

If you are laser scanning, you can achieve similar results by creating a colormap.
