Construct a line from a circle

par eskilsson vor 3 Jahren in Metrology Software / PC-DMIS aktualisiert von Neil Challinor vor 3 Wochen 2

We want the ability to construct a line from a circle by drawing a line perpendicular to the plane through the centrum line

NICHT GUT, ICH BIN UNZUFRIEDEN.
Zufriedenheit von par eskilsson vor 3 Wochen

A Generic Feature should be able to do that for you.

Fertiggestellt

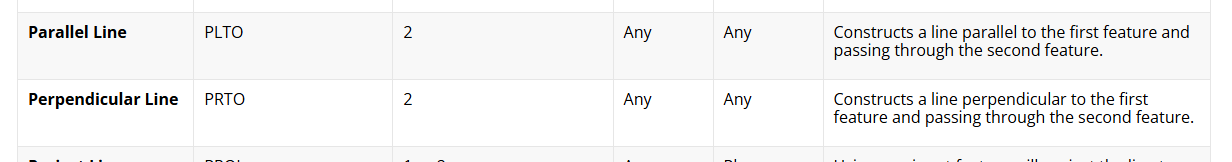

You can alread yconstruct a line parallel or perpendicular to the first feature, passing through the centroid of the second feature - see: Constructing a Line Feature


Image 725
